Measuring

20 colleagues in quality assurance

  • 3D measuring in climate controlled environment
  • Grind burn testing facility according to US-Standard ANSI/ AGMA 207-B-92













« Back to overview



Measuring

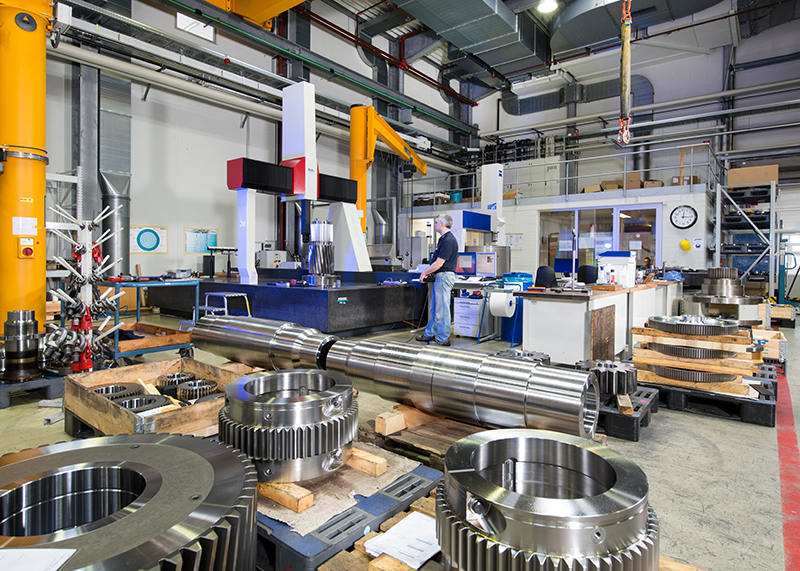

CNC coordinates measuring machine Prismo 10

  • Longitudinal Y = 2400 mm
  • Lateral  X = 1200 mm
  • Height  Z = 1000 mm
  • Table diameter: 930 mm

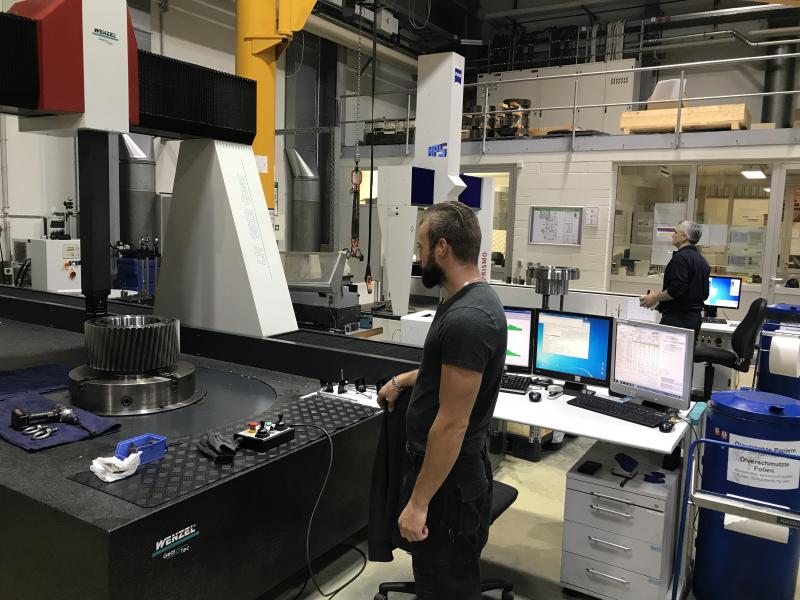

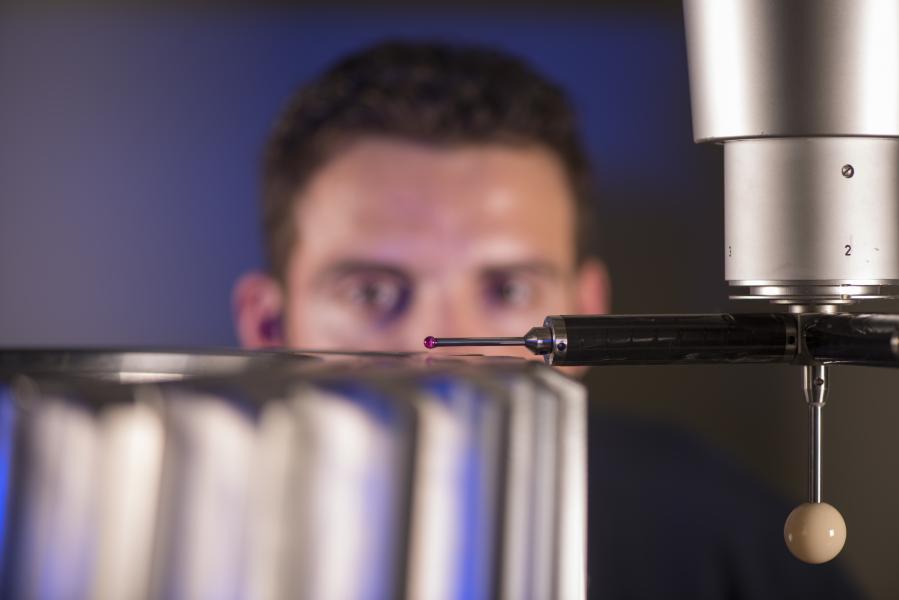

CNC gear measuring machine Wenzel LH 1512 Gear

  • Smallest module: 1
  • Largest module: 32
  • Minimum diameter: 5 mm o. sensor changer
  • Maximum diameter: 1500 mm o. sensor changer
  • Internal toothing diameter: > 12 mm
  • Helix angle  < 90°

Travel range

  • X = 1500 mm
  • Y = 4000 mm
  • Z = 1200 mm



Grind-burn test line

  • Nital etching process
  • According to US-Standard ANSI/ AGMA 207-B-92
  • Pool size: 1700 x 1700 mm
