Grinding

One of the most modern tooth flank grinding shops in the world

  • Certified to produce quality standards up to 4 (max. quality 1 is theoretically possible as well)
  • Grinding patterns in a range of 0.005 mm
  • Modules ranging from 2 to 35
  • Machining of sphericity, face and tooth flank grinding in one clamping

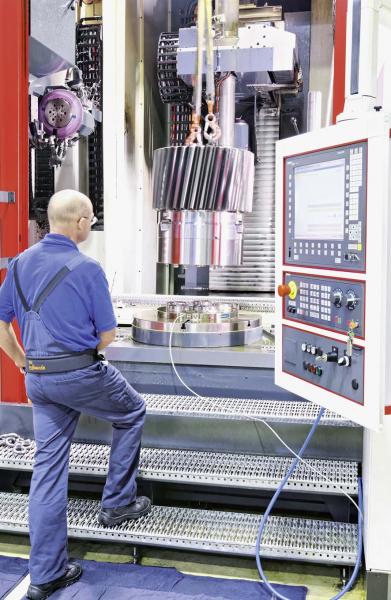

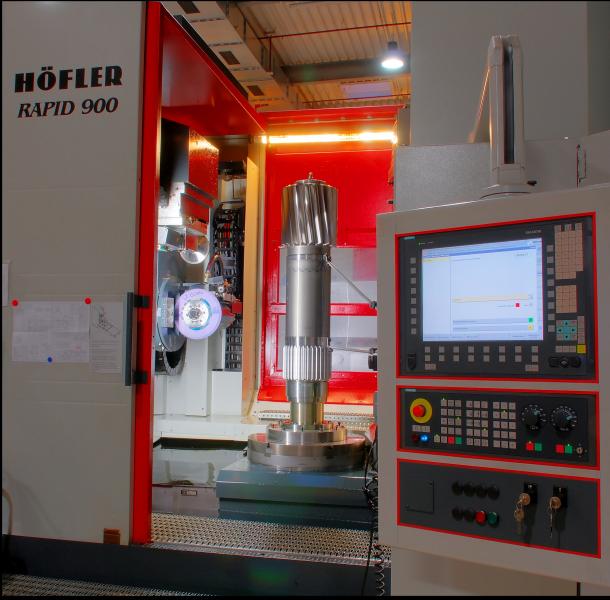

Tooth flank grinding

  • Minimum root diameter: - Ø 10 mm
  • Maximum outer diameter: - Ø 1.500 mm
  • Smallest module: m= 5
  • Largest module: m= 35
  • Maximum helix angle: (re./li.)45°
  • Maximum toothing width: 1.000 mm
  • Minimum table load: 100 kg
  • Maximum table load: 6.000 kg

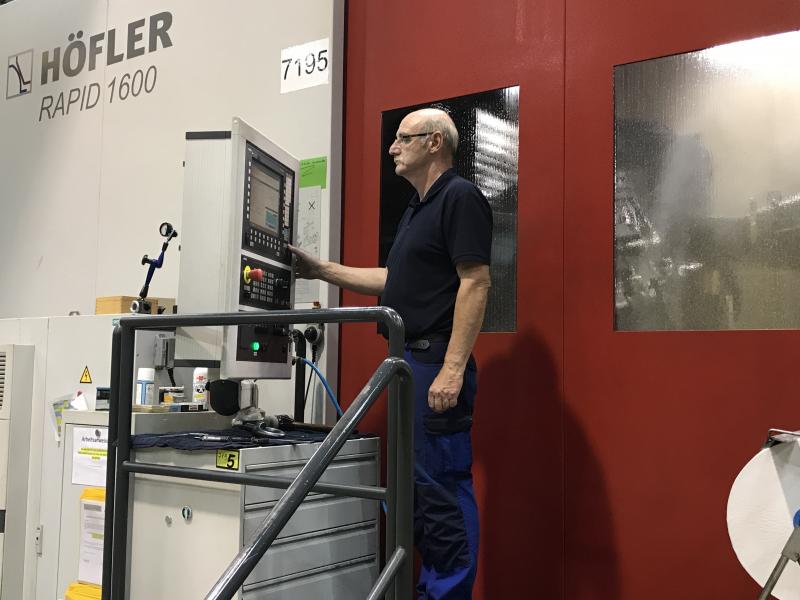

Multifunctional grinding

  • Maximum exterior: - Ø 1,250 mm
  • Minimum internal cylinder: - Ø 300 mm
  • Minimum external cylinder:- Ø 500 mm
  • Largest module: m= 35
  • Maximum toothing width: at ß=0° 980 mm
  • Maximum table load: 6.000 kg
